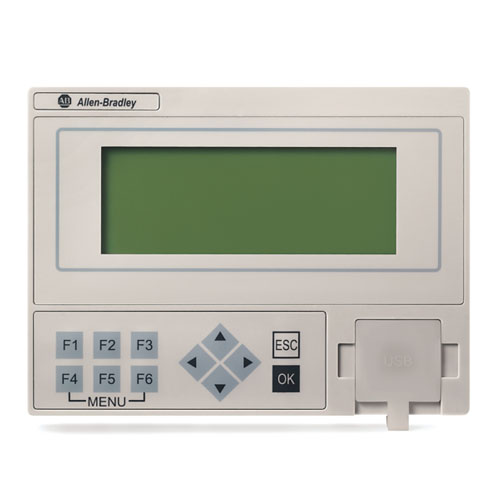

2080-REMLCD, Màn hình LCD điều khiển từ xa Micro800

2080-REMLCD, Màn hình LCD điều khiển từ xa Micro800

Thông số kĩ thuật - 2080-REMLCD

Mechanical

Width: 130 mm

Height: 97 mm

With mounting set: No

Depth: 35.5 mm

Mounting method DIN rail mounting

Display height: 48 mm

Display width: 106.5 mm

Weight, approx: 405 g (0.89 lb) – includes packaging weight

Electrical

Number of pixels, vertical: 64

Number of pixels, horizontal: 192

Backlight: 25000 hrs @ 25 °C, LED, tricolor backlight (RGB)

Operator input: Tactile keys (function keys, arrow keys, ESC and OK keys)

Voltage type: DC

With PC connection: No

Communication medium fibre optic: No

Communication medium wireless: No

Option for configuring controller: Yes

Communication medium copper: Yes

Power consumption, max: 1.5 W

Wire type: Copper

Input supply voltage: 12V/24V DC ±10%

Input supply current, max: 90 mA @ 12V, 60 mA @ 24V

Wiring category 3 – on power ports, 3 – on communication port

Programming port: USB to serial converter for programming the controller

Wire size: Single-wire gauge: 0.14…1.5 mm2 (26…16 AWG) rated @ 90 °C (194 °F), Dual-wire gauge: 0.14…0.75 mm2 (26…18 AWG) rated @ 90 °C (194 °F)

Certification

North American temperature code T4

Explosion-proof: No

Construction

Enclosure type rating: Meets IP65 (when front panel mounted)
